Australian designed & manufactured

Connecting critical infrastructure around the world

Micro Connect designs and builds hardware that keeps essential networks online and protected — from traffic signal communications and vehicle detection to emergency vehicle priority and cable theft prevention.

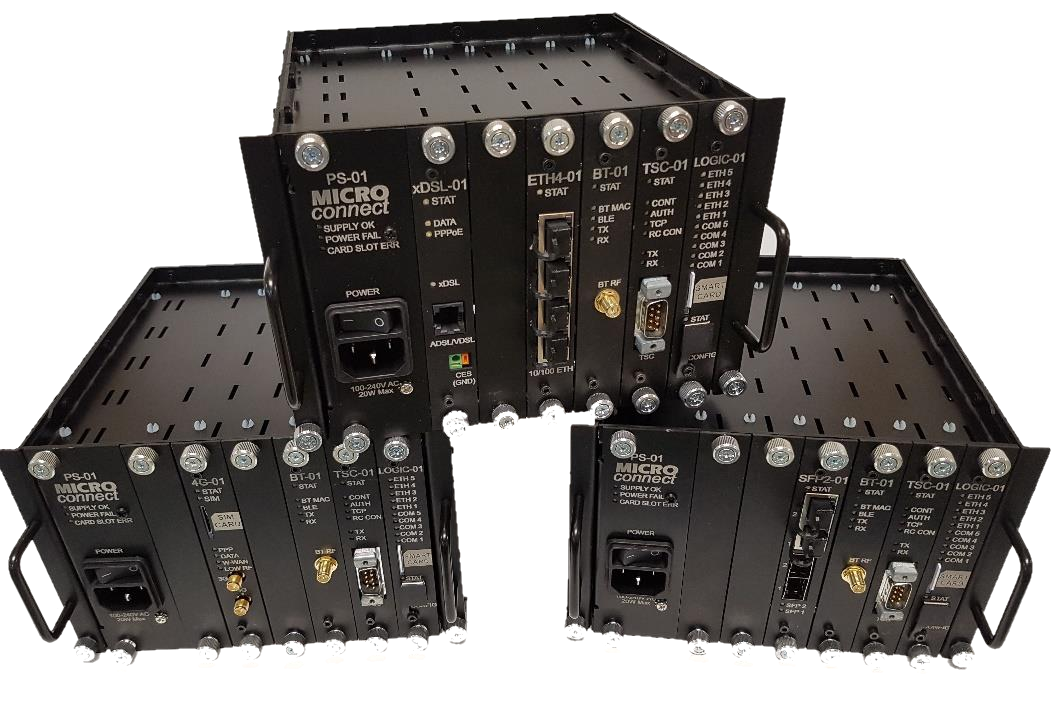

Micro Connect RE LCM — flagship modular rack Linking Communication Modules
25+Years of experience
In-houseSMT manufacturing line
70°CNATA-tested operation
100%Designed in Queensland
Products

Purpose-built hardware for connected infrastructure

Communications, detection, priority and protection — constantly updated to meet new technology requirements, with superior hardware design, long lifespan and easy maintenance.

RE LCM modular racks with different card configurations

RE LCM — Rack Expansion

Our flagship Linking Communication Module. A flexible card-based design — choose xDSL, 4G, Ethernet and SFP fibre uplinks, Bluetooth travel time and V2I cards, or a custom configuration to suit.

★ Top productModularSFP FibreFailoverSupercap UPS
View the card range
Cable Defender monitoring device

Cable Defender

Cable theft prevention that thinks inside the box. Waterproof IoT devices monitor cable pits in real time and raise instant alerts the moment a pit is opened — installed in under 5 minutes and trusted by government agencies.

★ Top productIoTReal-time alertsGIS integration
Visit cable-defender.com

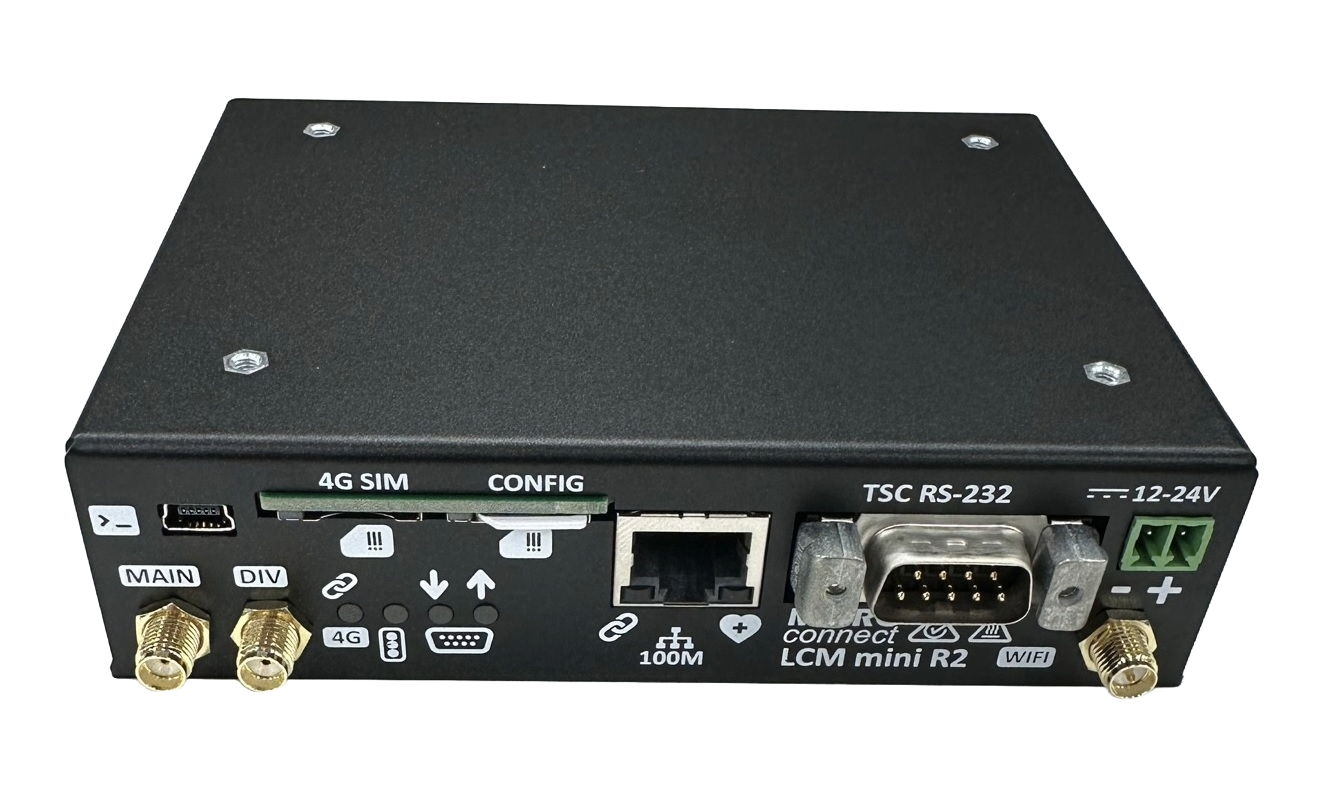

Mini 4G LCM R2 front panel

Mini 4G LCM

A compact 4G Linking Communication Module for traffic signal sites. Dual-antenna 4G with WiFi, 100M Ethernet, RS-232 TSC connection and 12–24V DC operation — all in a rugged low-profile enclosure.

4G / 4GXWiFiEthernetTSC RS-232
Enquire about Mini 4G LCM

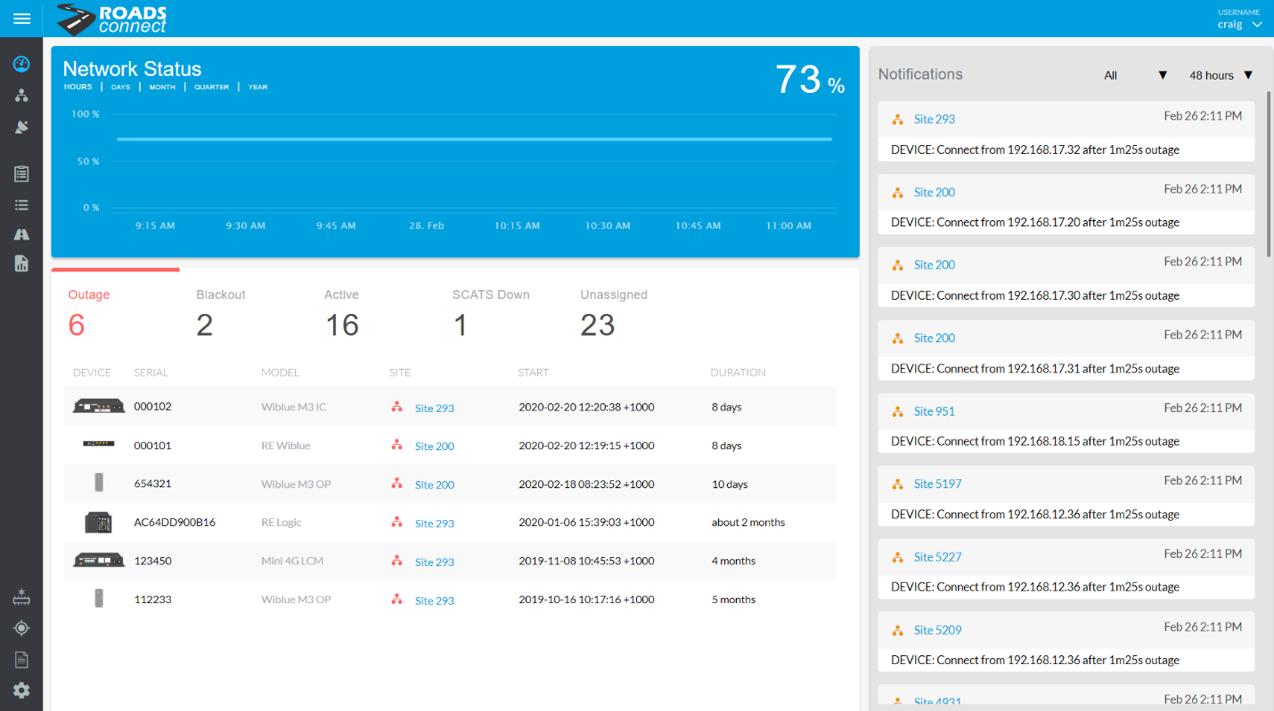

Roads Connect network management dashboard

Roads Connect

Network management for your entire signal communications fleet. Live network status, outage tracking, notifications and device management — one dashboard for every site.

MonitoringAlertsFleet management
Visit roadsconnect.com

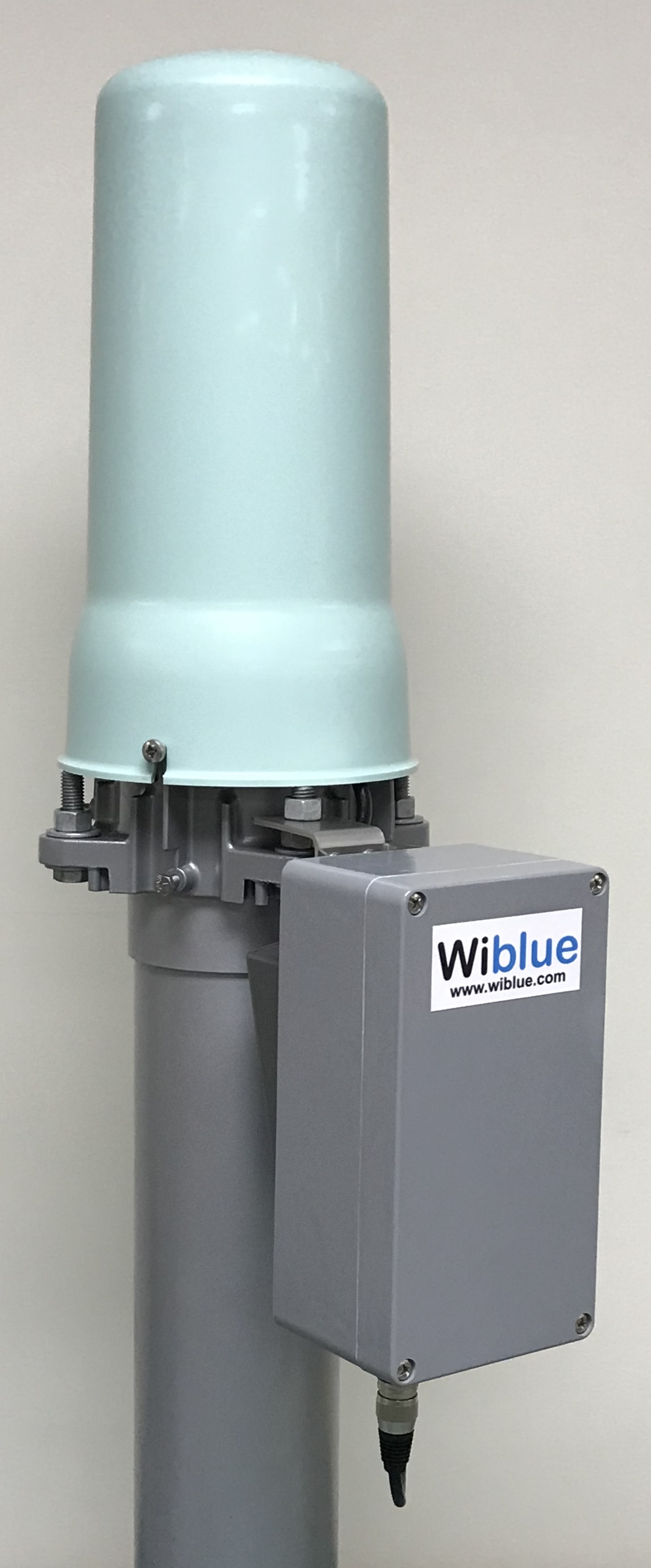

WiBlue detector mounted on a pole

WiBlue Detector

Enhanced Bluetooth + WiFi detectors delivering over 10× more detections than standard solutions. Four radio modules per unit, deployed in-cabinet, on-pole with solar, or as an RE LCM card.

Bluetooth / BLEWiFiTravel timeAddinsight
Visit wiblue.com

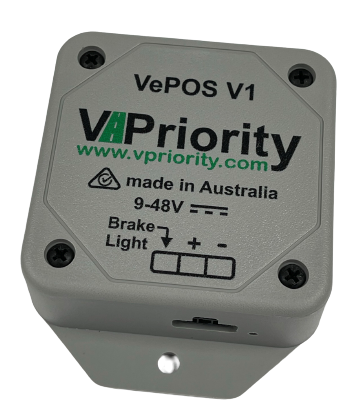

V Priority VePOS unit — GPS and 4G vehicle priority hardware

V Priority

Secure and reliable vehicle priority through traffic signals. Compact VePOS units with GPS and 4G give emergency vehicles priority when their flashing lights are activated, and heavy freight intelligent predictive priority — with web-based reporting.

Emergency vehiclesHeavy freightGPS + 4GISO-9001
Visit vpriority.com
RE LCM card range

Pick the cards. We build the module.

3G/4G/4GX and ADSL2/VDSL2 connectivity, dual fibre SFP with VLAN & 802.1q trunking, failover with link-quality monitoring, advanced GUI & CLI diagnostics, and supercap UPS with power-fail alarms.

LOGICMain CPU module with smart card, USB config and diagnostic LEDs
PS20W AC power supply, 7-second supercap UPS, 70°C rated
TSCRS-232 connection to the Traffic Signals Controller with LED status
SFP2Dual 100M SFP plus 2 Ethernet ports with redundant fibre capability
SFP-GGigabit SFP uplink, NBN FTTP compatible
xDSLADSL and VDSL support
HL3G / 4G / 4GX cellular connectivity
ETH1Single Ethernet port
ETH44 managed Ethernet ports
BT-E1Bluetooth V2 travel time plus 1 Ethernet, Addinsight compatible
SPATV2I DSRC module — dual-core Linux, 2 Ethernet ports and TSC serial
EDAExternal loop Detector Adapter, Linux based
IO44 digital inputs and 4 relay outputs with remote WAN capability
S1E1Serial to TCP/IP converter with Ethernet and 12V DC supply
CustomNeed something specific? Custom configurations are available
Capabilities

Designed, built and supported under one roof

⚙️

Hardware Design

Superior hardware design with long lifespan and easy maintenance, engineered for harsh roadside conditions.

💻

Software Development

In-house software and firmware team — from embedded Linux to the Roads Connect management platform.

🏭

SMT Manufacturing

Our own SMT pick-and-place production line in Kunda Park, Queensland — quality controlled end to end.

🔧

Repair & Test

Full repairs on all hardware with enhanced testing facilities emulating real-life installations.

Support

Already a customer? We've got you covered.

Contact us

Let's talk about your network

Whether it's a single intersection or a state-wide rollout, our team is ready to help.
